VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Kendall, FL | Sightline Windows & Doors Kendall

The VLX 100 Swing / Entry Door is a modern aluminum single entry door built around a minimalist frame and multi-point locking system. Homeowners in Kendall choose it when they want clean sightlines, strong security, and a front door that handles South Florida’s heat and storms without looking institutional. We’re Sightline Windows & Doors Kendall, an authorized ViewLux installation partner serving Kendall since 2014. That partnership matters because ViewLux warranties require certified installation, and we’ve completed hundreds of their door systems in Pinecrest, Dadeland, and the Heights. Whether you’re replacing a warped wood entry door on a 1980s ranch or specifying hardware for a new contemporary build near Kendall Drive, we measure, order, and install to manufacturer spec. Call (786) 321-3319 to schedule your free on-site estimate.

Call (786) 321-3319

Product Overview - VLX 100 Swing / Entry Door

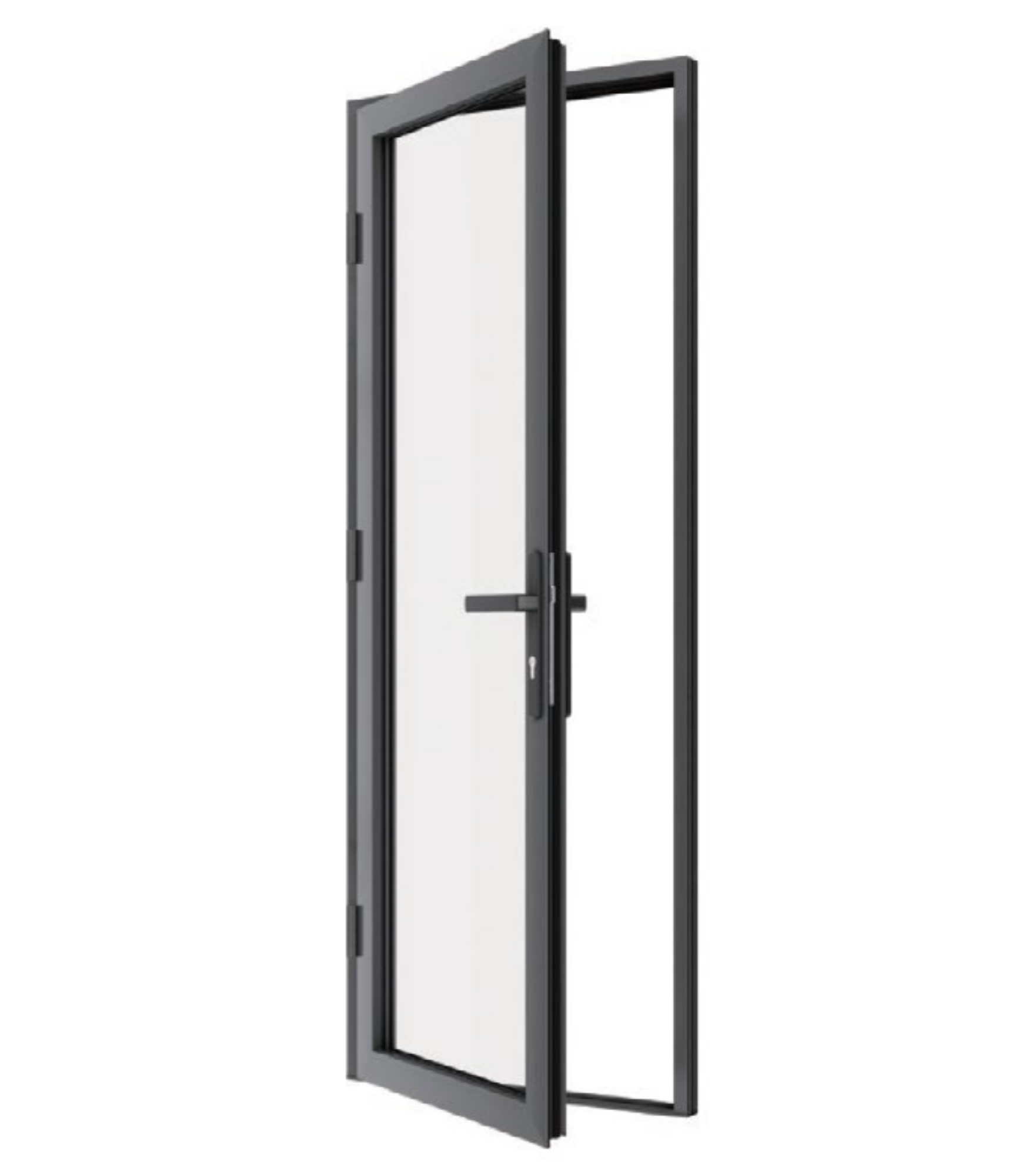

The VLX 100 is a modern aluminum swing door - single entry with minimalist frame and multi-point locking - designed for homeowners who want the slimmest possible frame without sacrificing structural integrity. The 2.56″ profile width gives you more glass and less metal, which changes how daylight enters a foyer or hallway. In Kendall, where many homes feature covered entries and deep overhangs, that extra glass area matters.

Buyers choose this series for three reasons. First, the aluminum construction won’t swell, rot, or warp like fiberglass or wood alternatives after our wet summers. Second, the multi-point locking hardware engages at three points along the frame, not just at the handle, which tightens the door against weatherstripping and frustrates forced entry. Third, the maximum 48″ width handles most single-entry openings without needing a custom engineered solution, keeping lead times reasonable.

Architecturally, the VLX 100 fits transitional and contemporary homes throughout Kendall. The Teak Wood finish reads warm on Mediterranean-influenced builds near Snapper Creek, while Premium Black or Anodized Silver suit the clean-box additions going up west of the Turnpike. We’ve installed this door on everything from 1,200-square-foot bungalows to full custom homes in the Hammocks. The 0.098″ wall thickness gives the frame rigidity you can feel when you close it. That solidity, combined with the thermal break separating interior and exterior aluminum, is what separates a door that lasts fifteen years from one that starts sagging after five.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency

The VLX 100 uses thermal break technology to separate interior and exterior aluminum, cutting conductive heat transfer. NFRC-rated performance means the numbers are third-party verified, not marketing claims. In Kendall, where attic temperatures regularly hit 140°F and exterior walls bake all afternoon, that thermal break keeps conditioned air inside and your FPL bill predictable.

Acoustic Performance

Multi-chamber frame construction and compression-sealed gaskets reduce exterior noise transmission. Homeowners near Kendall Drive or the Palmetto Expressway notice the difference, especially with laminated glass added. The door won’t make your house silent, but it will drop the traffic drone from “intrusive” to “background.”

Airtightness & Weather Seal

Continuous bulb seals and a compression gasket at the lock rail stop air infiltration. We verify this during installation with a smoke pencil test. In older Kendall homes with settling slabs, proper sealing matters more because the frame has to accommodate minor out-of-square conditions without leaking.

Waterproofing

Sill pan integration, end-dam corners, and AAMA 812 low-expansion foam sealant on all perimeter joints create a redundant drainage path. Water that gets past the primary seal exits through weep channels, not into your subfloor. We’ve seen too many DIY installs in The Crossings where the homeowner skipped the sill pan and rotted the jack studs.

Wind Resistance

The VLX 100 is wind-load rated for local climate requirements, including Miami-Dade’s HVHZ provisions when specified with impact-resistant laminated glass. The 0.098″ wall thickness and integrated corner keys resist racking under pressure. After Hurricane Irma, we replaced several competitor doors that twisted in their frames; the VLX 100 units we installed held.

Security & Hardware

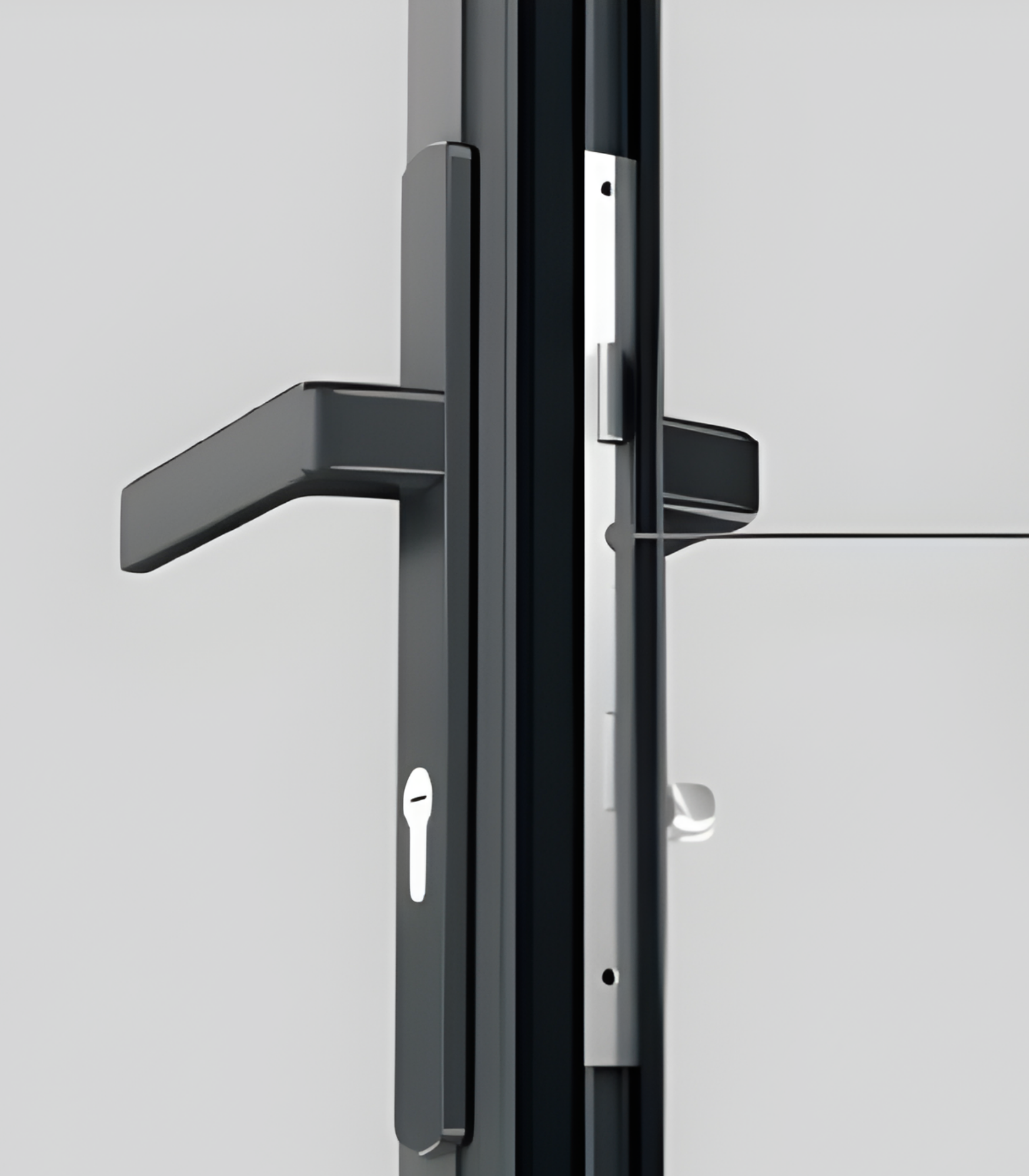

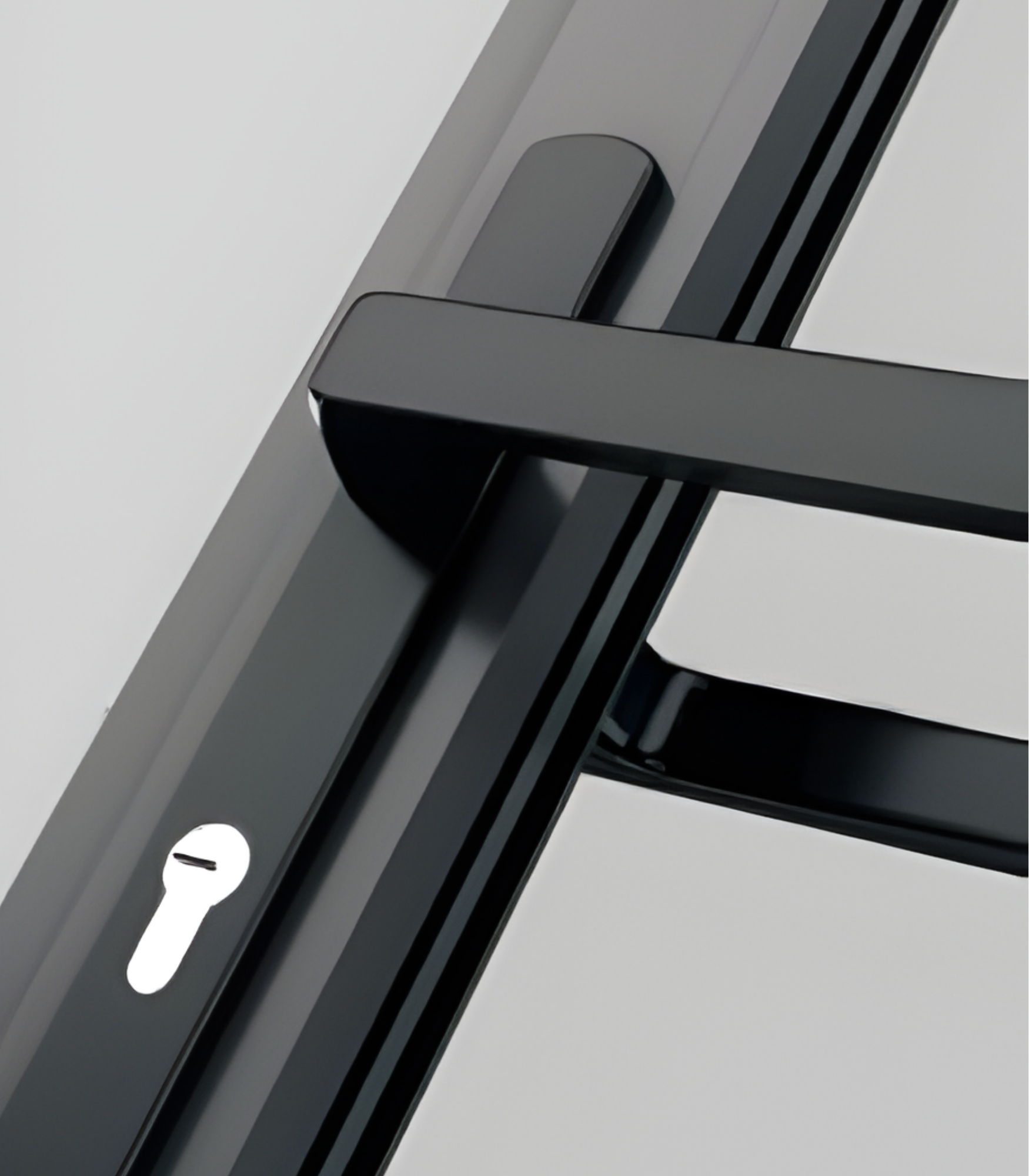

Multi-point locking engages at the handle, deadbolt, and a hook bolt near the hinge side. One motion secures three points. The hardware is grade-certified and specifically matched to the VLX 100 frame prep - no field modifications that weaken the strike plate. In Kendall, where package theft and opportunistic break-ins happen, a door that actually locks at multiple points is worth more than any camera system.

Color & Glass Options

Finishes

Premium Black dominates our Kendall orders. It works on white stucco, coral rock, and the gray-toned contemporary builds going up near North Kendall Drive. Pure White suits coastal-inspired homes in the eastern sections where homeowners want reflection, not absorption. Anodized Silver reads industrial and pairs well with exposed concrete or steel accent walls. Bronze and Champagne are the understated choices for traditional homes that want warmth without wood maintenance. Teak Wood is our recommendation for HOA communities with material restrictions - it photographs like wood, performs like aluminum.

Glass

Clear glass maximizes the minimalist aesthetic the VLX 100 is built for. Frosted gives privacy for side-entry doors facing a neighbor’s window. Obscure distorts the view more aggressively, good for bathrooms or home offices with street-facing entries. Low-E is standard for energy-conscious buyers; it reflects infrared heat without darkening the view. Tempered is safety glass, required by code for certain door locations. Laminated is the impact-rated option, built from two glass lites bonded to a structural interlayer. It costs more, but in Kendall’s wind-borne debris region, it’s the difference between replacing glass and replacing everything.

Screens

The retractable screen stores in a housing at the top of the frame and pulls down when you want ventilation. Most Kendall buyers skip it on front entries and add it on rear or patio doors where cross-ventilation matters.

Installation by Sightline Windows & Doors Kendall in Kendall

We install every VLX 100 to AAMA 2400/2410 standards because ViewLux requires it for warranty coverage, and because we’ve seen what happens when installers cut corners. Here’s our process:

Pre-install inspection. We measure the rough opening in three places for width, height, and square. In Kendall’s older neighborhoods like Westwood Lakes, settling slabs and shifted headers are common. We flag structural issues before the door arrives, not during.

Level, plumb, square setting. The frame gets shimmed on a bed of sealant, not just screwed into the opening. We check diagonal measurements to within 1/8″ tolerance. A frame that’s racked during installation will leak for fifteen years.

AAMA 812 foam perimeter seal. We use low-expansion foam sealant on all perimeter joints between frame and rough opening. This fills irregular gaps without distorting the frame, and it provides both air sealing and minor structural bonding. Skipping this step or using standard gap foam is a common shortcut that voids warranties.

Standard compliance documentation. Our installations follow AAMA 2400/2410 procedures for door installation. We document fastener spacing, sealant application, and sill pan integration. If ViewLux or your insurance company ever needs proof of proper installation, we have it.

Final water test. We spray the installed door with a calibrated water stream, simulating wind-driven rain. No leaks, no call-backs.

Cleanup and walkthrough. We remove old doors from your property, protect floors during work, and show you the lock operation and weep hole maintenance before we leave.

Improper installation voids the manufacturer warranty. That’s not fine print - it’s the first exclusion ViewLux lists. In Kendall’s climate, with our afternoon thunderstorms and salt-laden air, a poorly sealed door fails fast. We’ve been called to fix other contractors’ installs where the homeowner saved $200 and lost $3,000 in water damage. Professional installation isn’t an upsell. It’s the product working as designed.

Frequently Asked Questions - VLX 100 Swing / Entry Door

What is the lead time for the VLX 100 Swing / Entry Door in Kendall?

Standard lead time is 6-8 weeks from signed approval and deposit. Custom finishes or laminated impact glass can add 2-3 weeks. We keep select sizes in Premium Black and Clear glass on faster track for replacement projects. Call (786) 321-3319 to check current availability.

Does the VLX 100 qualify for energy tax credits?

The Low-E glass configuration with NFRC-rated thermal break may qualify for federal energy efficiency credits depending on current IRS guidance and your total window/door replacement scope. We provide NFRC labels and product certification documents for your tax preparer. This is not tax advice; consult your CPA.

What warranty comes with the Swing / Entry Door?

ViewLux provides a limited lifetime warranty on the frame and hardware, with 20-year glass coverage, contingent on authorized installation. Sightline Windows & Doors Kendall backs our installation workmanship for 5 years. Warranty transfers to subsequent homeowners with proper documentation.

Can I customize the size of the VLX 100?

The VLX 100 accommodates openings up to 48″ wide in standard production. Wider openings require a different ViewLux series or a paired door configuration. We measure your existing rough opening and recommend the right product, not a forced fit.

How do I maintain aluminum frames in Kendall’s climate?

Wash frames twice yearly with mild soap and water, check weep holes for debris after storm season, and lubricate the multi-point lock mechanism annually with a dry Teflon spray. Never use abrasive cleaners or pressure washers on the finish. Proper maintenance extends the door’s service life well beyond the warranty period.

Get a Quote - VLX 100 Swing / Entry Door in Kendall

Ready to see how the VLX 100 fits your entry? We’ll bring sample finishes to your home, measure your opening precisely, and provide a written line-item quote with no pressure to decide on the spot. Every quote includes the door, glass, hardware, screen option if selected, and our AAMA-standard installation. Call (786) 321-3319 or fill out our contact form to schedule your free on-site measurement in Kendall. We’ll have your project started within days of approval.

Written by the team at Sightline Windows & Doors Kendall, authorized ViewLux installation partner serving Kendall, FL.
