VLX 100 Double Swing / French Door

VLX 100 Double Swing / French Door in Kendall, FL | Sightline Windows & Doors Kendall

The VLX 100 Double Swing / French Door is ViewLux’s paired aluminum French door system built for homeowners who want clean symmetry between indoor and outdoor living. We’re Sightline Windows & Doors Kendall, the authorized ViewLux installation partner serving Kendall and South Miami-Dade since 2011. These doors open wide for entertaining on your patio, pool deck, or lanai without the visual interruption of a center post. The flush threshold means no trip hazard for kids, guests, or anyone moving between spaces with a tray of drinks. Every unit we install carries the full ViewLux product warranty backed by our own workmanship guarantee. If you’re comparing French door options for your Kendall home, call us at (786) 321-3319 to schedule a free on-site measurement and written quote.

Call (786) 321-3319

Product Overview - VLX 100 Double Swing / French Door

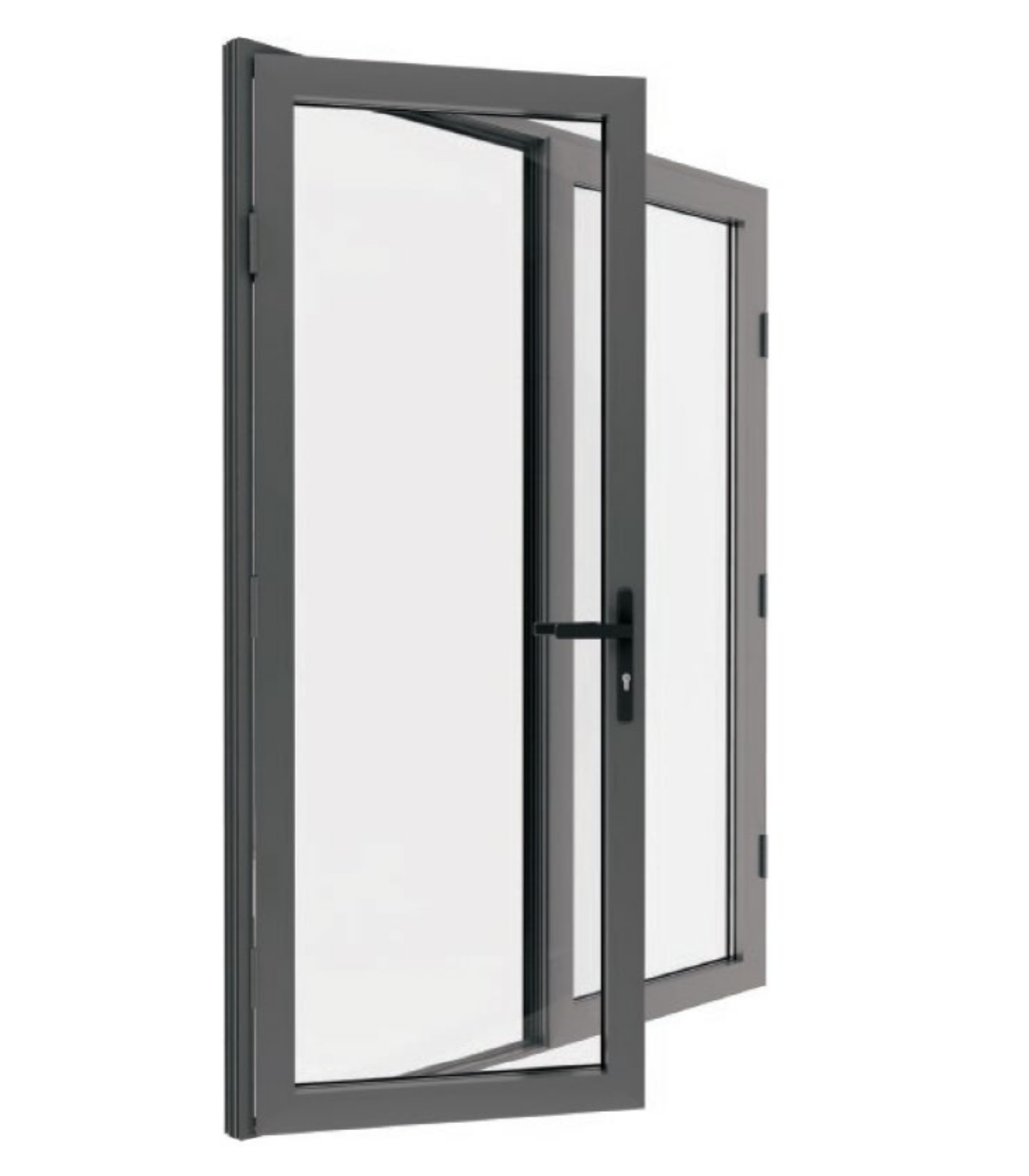

The VLX 100 is built around a simple idea: two door panels, equal in size, meeting in the middle with nothing between them but a slim seal. That symmetrical sightline is what draws architects and homeowners to this series. The 2.56″ profile width keeps the frame slim without sacrificing structural integrity, and the 0.098″ wall thickness gives the aluminum extrusion the rigidity needed for daily use in Kendall’s demanding climate.

Where does this door fit? Anywhere you want maximum opening width with a traditional French door aesthetic. We’ve installed the VLX 100 in Palmetto Bay ranch homes opening to covered patios, in Kendale Lakes properties replacing aging sliding doors, and in newer Kendall construction where the builder’s standard door didn’t match the homeowner’s vision. The flush threshold sits nearly level with your interior flooring, a detail that matters for wheelchair accessibility, stroller traffic, and the clean visual flow that modern Kendall design favors.

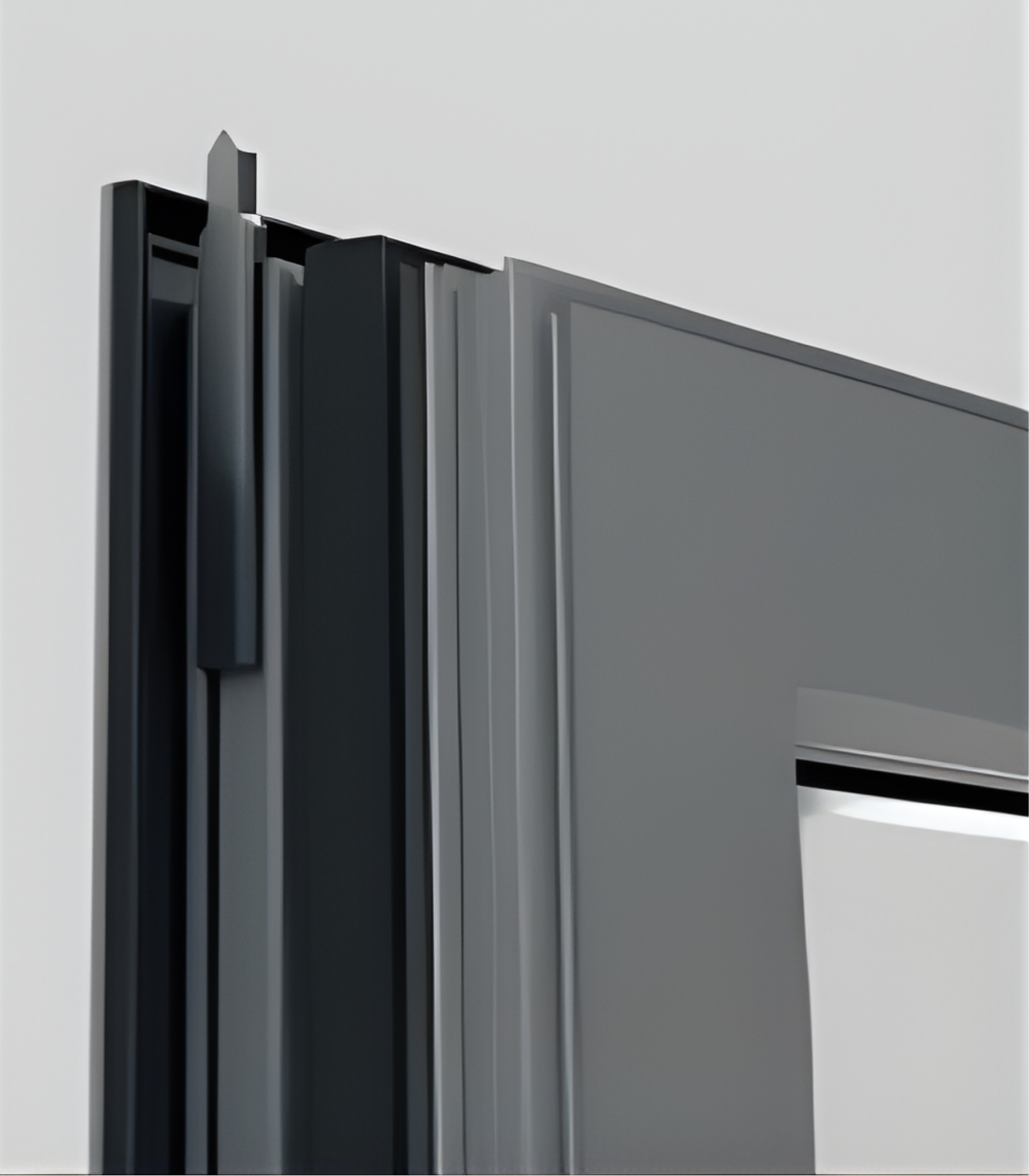

The multi-point lock hardware secures the door at several points along the jamb with a single handle lift. One motion engages bolts top and bottom plus the central deadbolt. In a market where buyers worry about patio door security, this hardware delivers real peace of mind without the clunky operation of older systems.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency

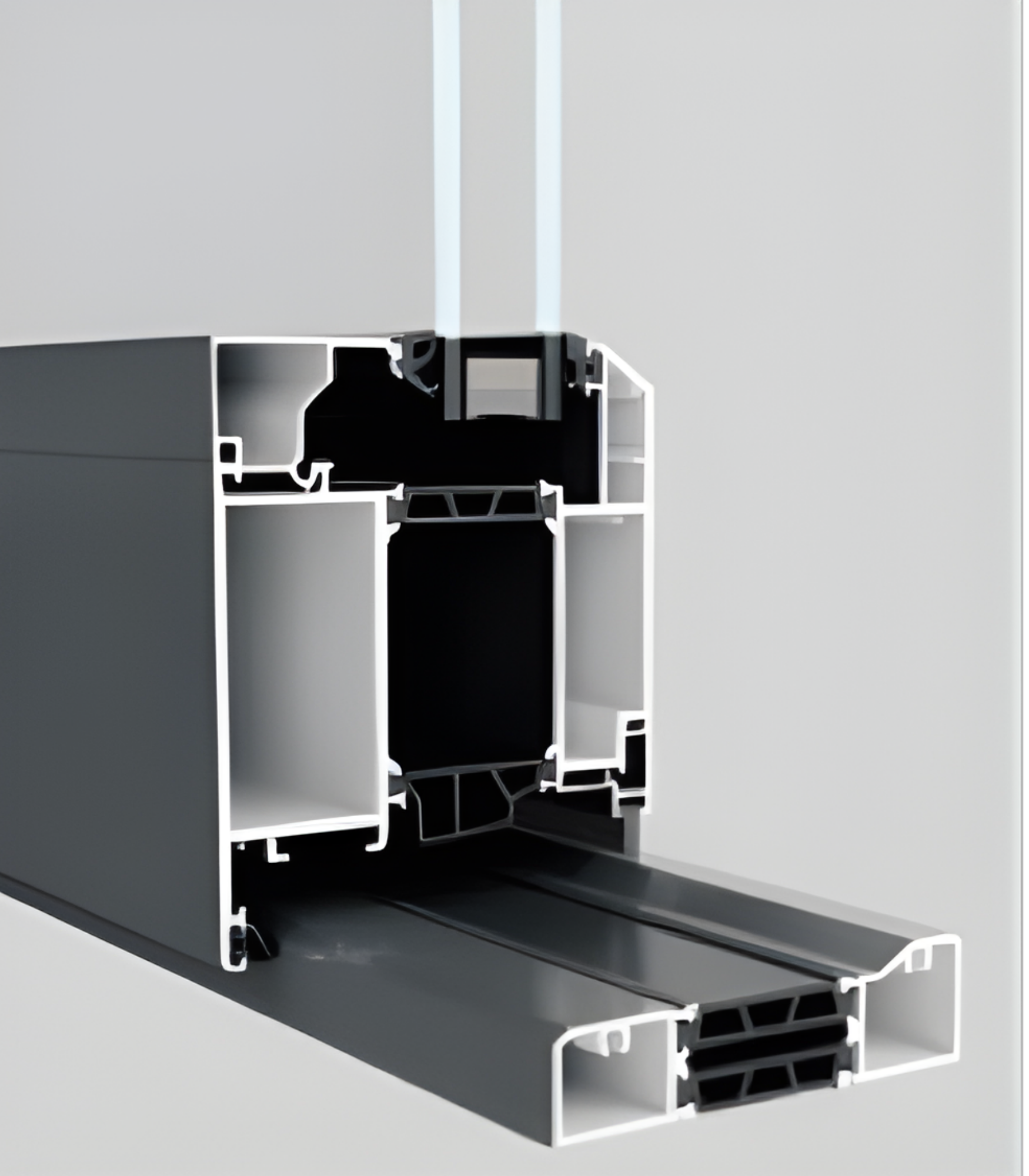

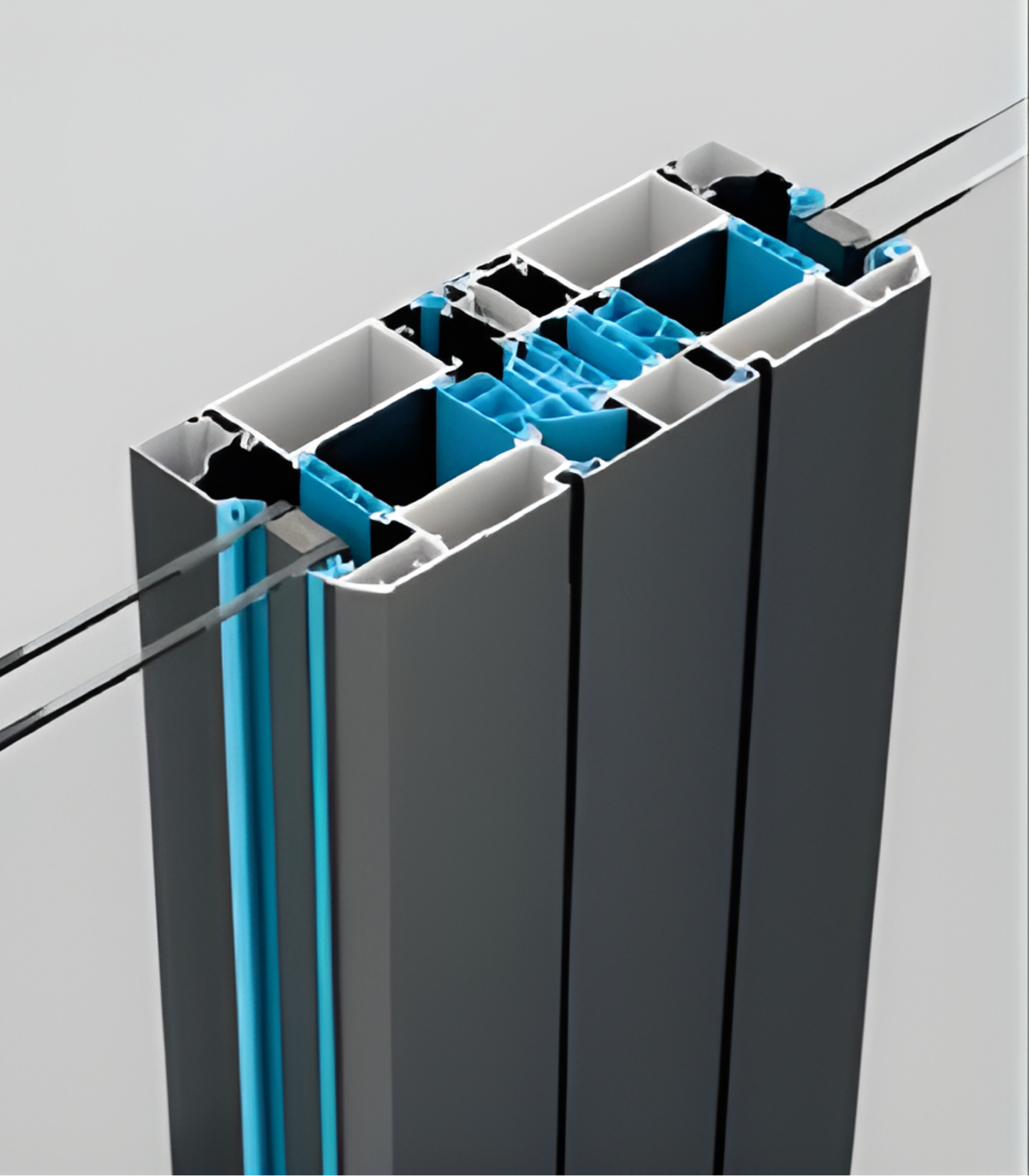

The VLX 100 uses thermal break technology to separate interior and exterior aluminum surfaces, cutting conductive heat transfer. This NFRC-rated system helps keep conditioned air inside your Kendall home during our brutal July and August cooling loads. Lower thermal transfer means your AC works less, and your FPL bill reflects it.

Acoustic Performance

Dual-pane construction with proper airspace damping reduces exterior noise transmission. For homes near Kendall Drive, the Palmetto Expressway, or any of the flight paths feeding Miami International, this matters. The laminated glass option adds mass and further dampens sound for bedrooms and home offices.

Airtightness & Weather Seal

Compression seals and engineered weatherstripping meet AAMA standards for air infiltration resistance. You won’t feel a draft around these doors in January when a cold front drops Kendall into the 50s. The seals maintain flexibility through years of UV exposure and humidity cycling.

Waterproofing

AAMA 812 low-expansion foam sealant fills all perimeter joints during installation, creating a continuous barrier against wind-driven rain. Our crews in Kendall pay particular attention to the sill pan and flashing details, because a door that leaks during our summer downpours is worse than no door at all.

Wind Resistance

The VLX 100 is wind-load rated for South Florida requirements. Impact-resistant laminated glass is available for homes in High-Velocity Hurricane Zones. We verify your specific Kendall address against Miami-Dade County wind speed maps to specify the right glazing and anchorage for your exposure.

Security & Hardware

Multi-point locking engages at minimum three positions with one handle operation. The hardware is finished to match your door color, and the mechanism is field-serviceable by our technicians. For Kendall homeowners who travel seasonally, this is the difference between worrying and not worrying about your back door.

Color & Glass Options

Premium Black dominates current Kendall modern and transitional architecture. It frames views like a photograph and pairs cleanly with black window frames already on the home. Pure White remains the safe choice for traditional stucco exteriors and interiors where you want the door to disappear into the trim.

Anodized Silver carries an industrial honesty that works in contemporary homes with exposed concrete or steel elements. Bronze warms up Mediterranean and Spanish Colonial revival properties common in older Kendall neighborhoods. Champagne splits the difference, subtle enough for conservative HOAs, distinctive enough to notice. Teak Wood grain finish gives you the warmth of wood appearance with aluminum’s zero-maintenance reality, ideal for homes where real wood would bake and check in the South Florida sun.

Glass selection depends on location and function. Clear for maximum light and view. Frosted or Obscure for bathrooms, bedrooms, or any door facing directly into a neighbor’s window. Low-E coating is standard recommendation for west-facing installations in Kendall, where afternoon sun loads are brutal. Tempered safety glass meets code for doors and sidelights. Laminated glass brings impact resistance and sound control together in one upgrade.

The retractable screen option stores in the frame when not in use, preserving the clean sightline that makes this door appealing. For homes with existing pool enclosures or where insects aren’t a pressing issue, no screen keeps the profile slimmest.

Installation by Sightline Windows & Doors Kendall in Kendall

We install every VLX 100 per AAMA 2400/2410 standards, which is the manufacturer’s requirement for warranty coverage. Skip this, or hire a crew that doesn’t know what AAMA means, and your ViewLux warranty becomes a piece of paper with no value.

Our process starts with a pre-install inspection of the rough opening. We check for square, level, and plumb before the door ever leaves our truck. In Kendall’s older homes, especially the 1970s and 1980s construction around Kendale Lakes and The Hammocks, rough openings have settled, been modified, or were never right to begin with. We address this before installation, not after, with structural shimming and header reinforcement as needed.

The door gets set level, plumb, and square in the opening. We fasten through the jamb with appropriate anchors for your wall construction, whether that’s concrete block, frame with stucco, or other. AAMA 812 low-expansion foam sealant fills the perimeter gap, creating both an air seal and a structural bond that prevents frame movement. We cap exterior joints with backer rod and sealant matched to your finish for clean appearance and long-term performance.

Every installation ends with a water test and operational check. We run the door through multiple open-close cycles, verify lock engagement at all points, and check the threshold for proper drainage. We leave the work area cleaner than we found it.

Kendall’s climate demands specific attention. Our summer humidity can reach 90% for weeks. That moisture wants inside every gap. Our perimeter sealing and sill pan details are designed for this reality, not for a dry climate where “good enough” stays good enough.

Frequently Asked Questions - VLX 100 Double Swing / French Door

What is the lead time for the VLX 100 Double Swing / French Door?

Lead time typically runs 6 to 8 weeks from final measurement and deposit, depending on glass and finish selection. Custom finishes and laminated impact glass can extend this slightly. Call (786) 321-3319 to check current production schedules and reserve your slot.

Does the VLX 100 qualify for energy tax credits?

The Low-E glass configuration with NFRC-rated thermal break assembly meets the criteria for federal energy efficiency tax credits in most years. We provide the NFRC label documentation and product certification you’ll need for your tax preparer. Tax credit availability changes with legislation, so verify current year eligibility with your accountant. Call us at (786) 321-3319 for the efficiency ratings specific to your configuration.

What warranty comes with the Double Swing / French Door?

ViewLux provides a limited lifetime warranty on the frame and hardware, with 20-year glass coverage, contingent on professional installation per AAMA standards. Our workmanship carries a 5-year guarantee covering installation-related issues. The manufacturer warranty is void if installed by non-authorized personnel. Sightline Windows & Doors Kendall is your authorized Kendall source for valid warranty coverage.

Can I customize the size?

The VLX 100 accommodates openings up to 96 inches wide in standard configurations. Within that maximum, we can specify custom widths and heights in 1/8-inch increments. Very large openings may require structural headers or side lites, which we engineer during our on-site measurement. Call (786) 321-3319 to schedule measurement and discuss your specific opening.

How do I maintain aluminum frames?

Wash frames twice yearly with mild soap and water, rinse thoroughly, and check weep holes for debris. Lubricate the multi-point lock mechanism annually with a dry silicone spray. Avoid abrasive cleaners or solvents that can damage the finish. The anodized and powder-coated finishes on the VLX 100 are designed for minimal maintenance in Kendall’s salt-air and high-UV environment. Call us at (786) 321-3319 if you notice operation changes or finish issues.

Get a Quote - VLX 100 Double Swing / French Door in Kendall

Ready to see the VLX 100 in your Kendall home? We’ll bring samples, measure your opening, and deliver a written line-item quote with no pressure and no obligation. Every project starts with understanding what you’re trying to achieve, whether that’s more light, better access to your outdoor space, or replacing a failing door before the next storm season. Call (786) 321-3319 or stop by our Kendall showroom to get started.

Written by the team at Sightline Windows & Doors Kendall, serving Kendall, FL since 2011.
