VLX 100 Bifold / Folding Door

VLX 100 Bifold / Folding Door in Kendall, FL | Sightline Windows & Doors Kendall

The VLX 100 Bifold / Folding Door is an accordion-style aluminum system that folds away completely, turning an entire wall into open air. Homeowners in Kendall choose it for poolside entertaining, covered patio access, and bringing natural light deep into living spaces. We’re Sightline Windows & Doors Kendall, an authorized ViewLux installation partner serving Miami-Dade County since 2011. Our team measures, orders, and installs every VLX 100 to manufacturer spec so your warranty stays intact. If you’re planning a new build or replacing sliding doors in a Pinecrest or Dadeland area home, call (786) 321-3319 to schedule a free on-site estimate.

Call (786) 321-3319

Product Overview - VLX 100 Bifold / Folding Door

The VLX 100 is built around a simple idea: the boundary between inside and outside should disappear when you want it to. The accordion-style aluminum bifold design stacks panels neatly to one side, opening up wall-to-wall passages up to 20 feet wide. That span covers most residential openings without structural headers that eat up ceiling height.

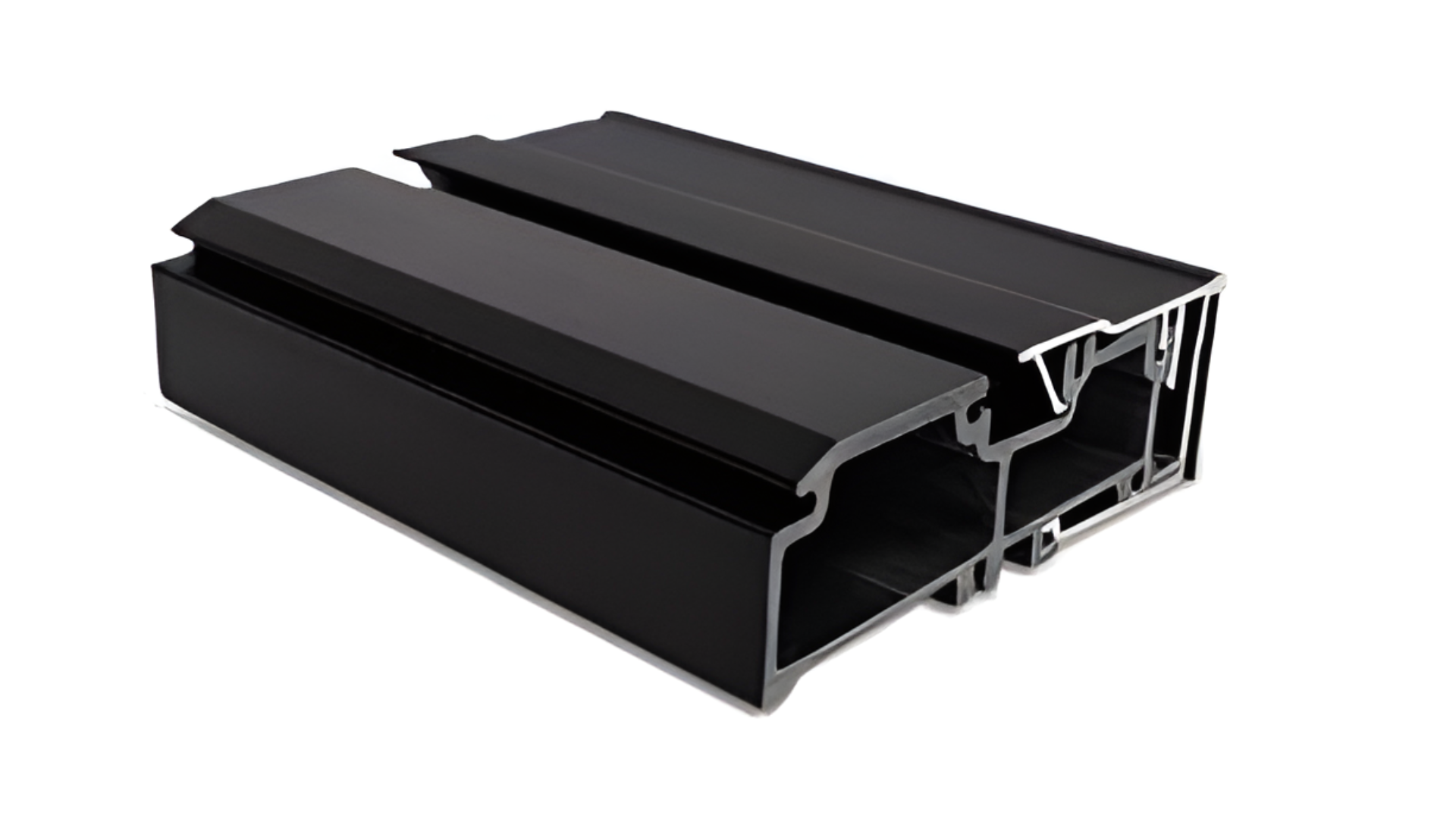

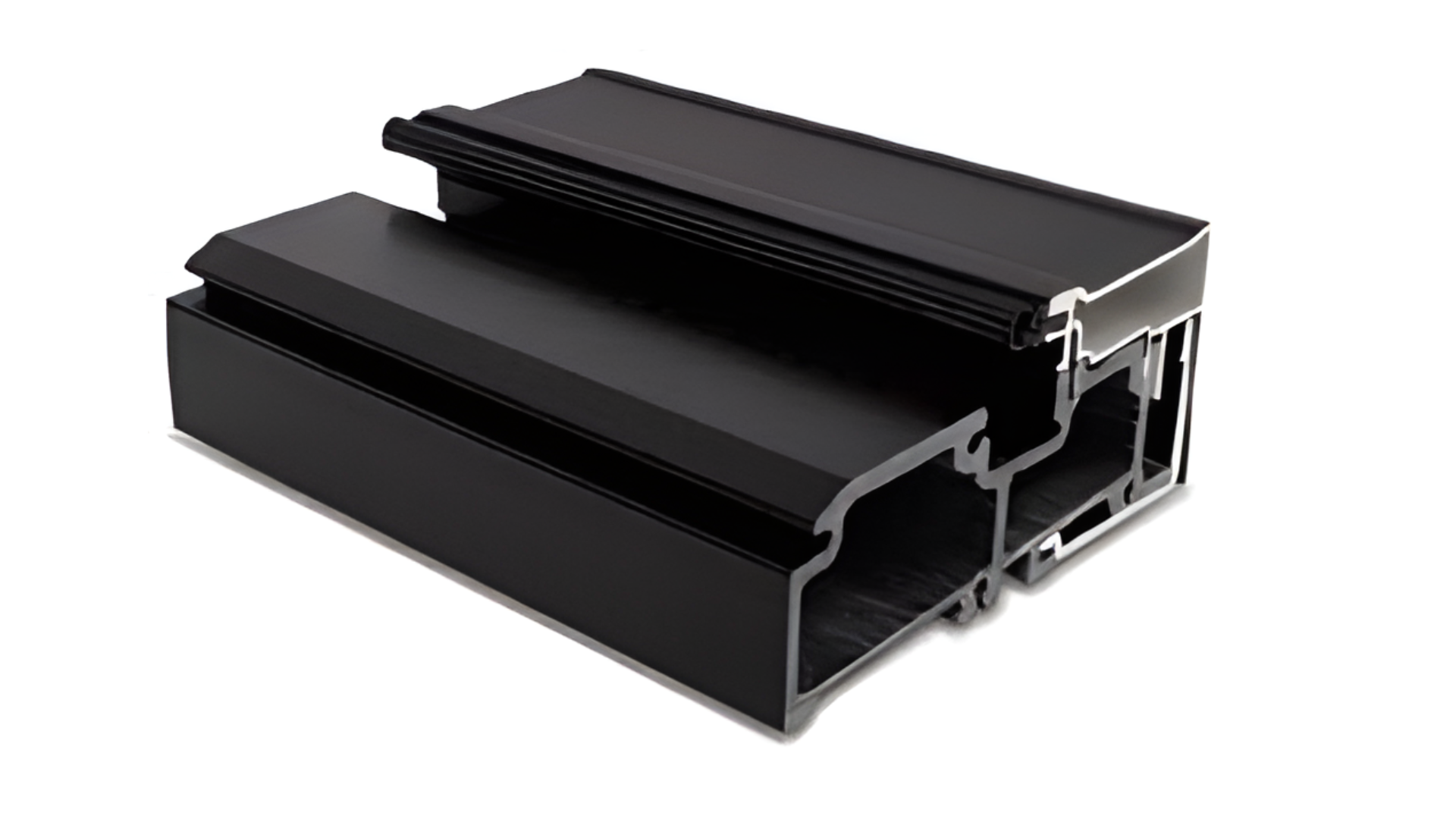

Buyers in Kendall gravitate toward this series for three reasons. First, the slim 2.56-inch profile width means more glass and less frame. Second, the 0.098-inch wall thickness in the aluminum extrusions resists the flex and racking that cheaper systems develop after a few humid summers. Third, the panel count flexibility lets you match the door to the architecture rather than forcing the architecture to fit the door.

The VLX 100 suits modern Kendall homes with clean sightlines, but we’ve also installed it in Mediterranean-style renovations where homeowners wanted to open formal living rooms to courtyards. The engineering is contemporary; the application depends on your space. Every unit we install carries the ViewLux factory warranty backed by our authorized partner status and workmanship guarantee.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency
The VLX 100 uses a continuous thermal break that separates interior and exterior aluminum surfaces. NFRC-rated performance means the numbers are third-party verified, not marketing claims. In Kendall’s climate, that translates to less heat transfer through the frame and lower cooling loads during July and August afternoons.

Acoustic Performance
Multi-point locking hardware compresses seals evenly around each panel perimeter. Combined with laminated glass options, the system reduces exterior noise from nearby traffic on Kendall Drive or bird road corridors. We specify glass thickness and airspace based on your specific sound environment.

Airtightness & Weather Seal
Compression seals at meeting stiles and perimeter gaskets are tested to AAMA standards for air infiltration. The accordion folding action doesn’t compromise the seal; when closed, each panel locks into position and the gasket system engages uniformly. No drafts, no whistling during cold fronts.

Waterproofing
Sill design includes integrated drainage channels that move water to the exterior. We apply AAMA 812 low-expansion foam sealant at all perimeter joints during installation, creating a continuous barrier between frame and rough opening. This is where most water intrusion starts, and where amateur installations fail.

Wind Resistance
The VLX 100 is wind-load rated for Miami-Dade County requirements. The 0.098-inch wall thickness and reinforced corner construction resist the pressure differentials that develop during tropical storms. Impact-resistant laminated glass is available for homes in flood zones or areas with strict hurricane protection codes.

Security & Hardware
Multi-point locking engages at the top, bottom, and center of the operating panel. Stainless steel rollers and hinges resist corrosion in Kendall’s salt-air environment. The hardware is accessible for maintenance but not vulnerable to casual tampering.

Color & Glass Options

Six finishes cover the range of Kendall architecture. Premium Black and Pure White dominate new construction in the Dadeland and South Miami areas, where contemporary lines are the norm. Anodized Silver suits mid-century modern renovations in the Redland or near the Deering Estate. Bronze and Champagne read warmer, blending with Mediterranean and Spanish Colonial exteriors common in older Kendall neighborhoods. Teak Wood finish offers the grain pattern without the maintenance of actual wood in our humidity.

Glass selection depends on orientation and use. Clear glass maximizes visible light for north-facing installations. Low-E coating rejects infrared heat on west and south exposures without darkening the view. Tempered glass is standard for safety near pools and patios. Laminated glass adds the impact resistance required in some Kendall zip codes and reduces sound transmission. Gray Tint and Black Tint cut glare for rooms with direct afternoon sun or for homeowners who want the glass to read as a design element rather than transparent.

Retractable screens are available for any configuration. In Kendall, where mosquitoes persist ten months a year, we recommend specifying the screen unless the opening faces a screened porch or lanai.

Installation by Sightline Windows & Doors Kendall in Kendall

We install every VLX 100 to the standards that protect your investment. The process starts with a pre-installation inspection: we verify rough opening dimensions, check for square and plumb, and identify any structural modifications needed before the unit arrives. Measurements are confirmed twice. Manufacturing lead times run several weeks, so accuracy at this stage prevents costly delays.

Setting the frame is where installation quality separates professional results from problems that surface two years later. We level, plumb, and square the frame to within 1/8 inch across the full span before anchoring. A 20-foot opening magnifies any error; the panels won’t track smoothly if the head or sill is out of plane.

Perimeter sealing follows AAMA 812 protocol with low-expansion foam sealant. This prevents the bowing and distortion that high-expansion products cause in aluminum frames. We back-seal all joints and apply compatible sealants at the exterior face for a continuous drainage plane.

Final installation steps include hardware adjustment, operational testing across the full fold range, and a water spray test that simulates wind-driven rain. We clean the site and walk you through operation, maintenance, and warranty documentation.

Improper installation voids the ViewLux manufacturer warranty. That is not fine print; it is the standard condition for premium door systems. Our authorized partner status means we report installations to ViewLux, register your warranty, and remain your local point of contact for any service needs. In Kendall’s climate, with salt air, high humidity, and tropical storm exposure, installation quality directly determines how long your door performs as designed.

Frequently Asked Questions - VLX 100 Bifold / Folding Door

What is the lead time for the VLX 100 Bifold / Folding Door?
Lead time typically runs 6 to 10 weeks from final measurement and deposit, depending on panel count, finish selection, and glass type. Specialty finishes or impact-rated laminated glass may extend this slightly. Call (786) 321-3319 to check current production schedules and reserve your slot.

Does the VLX 100 qualify for energy tax credits?
The VLX 100 with Low-E glass and thermal break construction meets NFRC energy performance standards, which is the prerequisite for federal energy efficiency credits. Specific credit amounts depend on the tax year and your total installation cost. We provide NFRC labels and product certification documentation for your tax preparer. For current eligibility details, call us at (786) 321-3319.

What warranty comes with the Bifold / Folding Door?
ViewLux provides a limited lifetime warranty on the aluminum frame, 10 years on the insulated glass unit, and 5 years on hardware and finishes, contingent on professional installation by an authorized partner like Sightline Windows & Doors Kendall. Our workmanship carries a separate 2-year guarantee. Warranty registration is completed at installation; you’ll receive documentation before we leave the site.

Can I customize the size?
The VLX 100 accommodates openings up to 20 feet wide, with panel counts from 2 to 6 determining the fold configuration. Height and width are factory-fabricated to your measured rough opening within 1/4 inch. We do not field-modify frames; customization happens at the manufacturing stage based on our verified measurements. Schedule a free measurement in Kendall at (786) 321-3319.

How do I maintain aluminum frames in Kendall’s climate?
Rinse frames quarterly with fresh water to remove salt accumulation, especially if you’re near Biscayne Bay or open water. Lubricate hinges and rollers annually with a silicone-based product. Check weep holes in the sill seasonally to ensure drainage paths stay clear. Avoid abrasive cleaners; mild soap and water preserves the finish. For operational issues or seal concerns, call (786) 321-3319 and we’ll inspect under our service agreement.

Get a Quote - VLX 100 Bifold / Folding Door in Kendall

Ready to open your wall to the backyard, patio, or pool deck? Sightline Windows & Doors Kendall brings the VLX 100 Bifold / Folding Door to homes across Kendall, Pinecrest, and South Miami with authorized installation that protects your warranty and your home’s weather seal. Call (786) 321-3319 today to schedule your free on-site measurement and written estimate. We’ll bring finish samples, review your opening conditions, and give you a firm quote with no change orders once work begins.

Written by the team at Sightline Windows & Doors Kendall, authorized ViewLux installation partner serving Kendall, FL since 2011.
